FULLY AUTOMATIC HORIZONTAL STRAPPING MACHINE (HEAVY)
MH-105AH
MH-105AH Fully Automatic Horizontal Strapping Machine (Heavy-Duty) – High-Tension Pallet Strapping Solution for Brick, Block & Heavy Industry
The MH-105AH is an industrial-grade fully automatic horizontal strapping machine engineered for heavy-duty pallet strapping of dense materials including bricks, concrete blocks, ceramic tiles, and building materials. This automated horizontal banding machine delivers 20–250 kg adjustable tension, ensuring secure load containment for weights up to 350 kg machine capacity.
Features:
One to multi-cycles horizontal pallet strapping
High-tension, suitable for the heavy products
MH - 105A SPECIFICATION
- Power Supply: 380V 50/60Hz 3PH 3.1kW
- Air Pressure: 0.4 - 0.6MPa
- Tension Range: 20~250kg(adjustable)
- Packing Speed: ≤15 seconds/cycle
- Applicable PET Strap:width 9~15（±0.1）mm，thickness0.55~1.0（±0.1）mm
- Applicable PET Strap Spool: inner dia.406mm，outer dia.600mm，width190mm

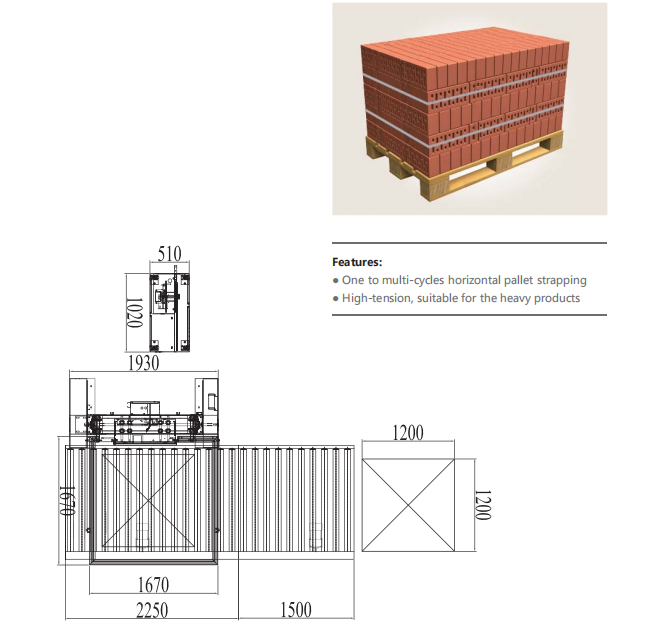

- Machine Dimension: L1930×W3240×H2800mm
- N.W: 350kg （arch sizeW1500mm×H1500mm）
