FULLY AUTOMATIC HORIZONTAL STRAPPING MACHINE MH-105A
The MH - 105A is a fully automatic horizontal strapping machine. It's designed for efficient bundling of large products on pallets, supporting multi - cycle horizontal pallet strapping.
Its key features include suitability for large products, cooperation with the MH - 105B machine, and hot welding at the side.
With a power supply of 380V 50/60Hz 3PH 3.1kW and an air pressure of 0.4 - 0.6MPa, it has a tension range of 0 - 90kg (adjustable). The applicable PP strap width is 9 - 15mm (0.1 inch), thickness is 0.55 - 1.0mm (0.1 inch), and the packing speed is ≤15 seconds per cycle. The PP strap spool has an inner diameter of 200 - 210mm, outer diameter of 400 - 500mm, and width of 160 - 180mm. The working table dimensions are 1670mm in height and 2250mm in length, with a maximum bundling size of 1200mm in both length and width. Its machine dimensions are L1930 × W3240 × H2800mm, and it weighs 350kg.
MH - 105A SPECIFICATION
- Power Supply: 380V 50/60Hz 3PH 3.1kW
- Air Pressure: 0.4 - 0.6MPa
- Tension Range: 0 - 90kg (adjustable)
- Packing Speed: ≤15 seconds/cycle
- Applicable PP Strap: width 9 - 15mm (0.1mm), thickness 0.55 - 1.0mm (0.1mm)
- Applicable PP Strap Spool: inner dia. 200 - 210mm, outer dia. 400 - 500mm, width 160 - 180mm

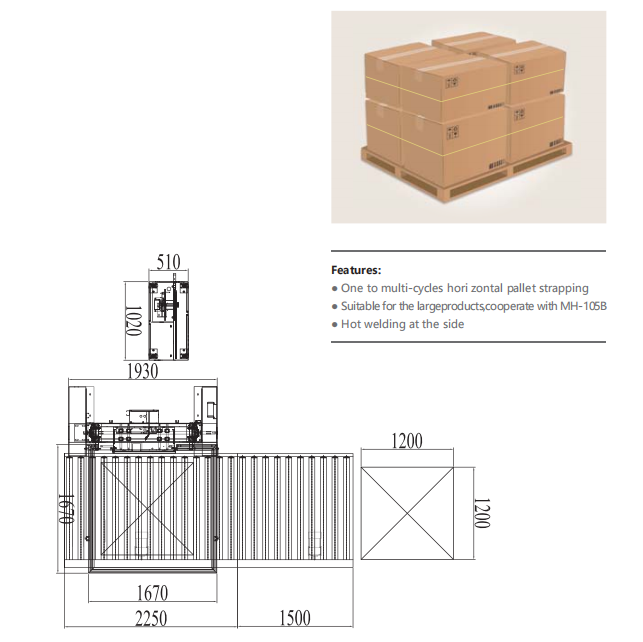

- Working Table Dimensions: 1670mm (height) × 2250mm (length)
- Max Bundling Size: 1200mm (length) × 1200mm (width)
- Machine Dimension: L1930 × W3240 × H2800mm
- N.W: 350kg (arch size W1500mm × H1500mm)
