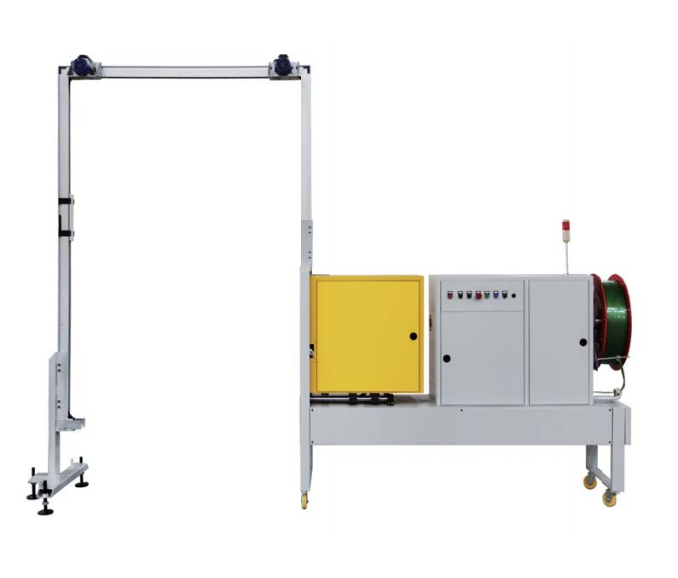

FULLY AUTOMATIC VERTICAL STRAPPING MACHINE MH-105B

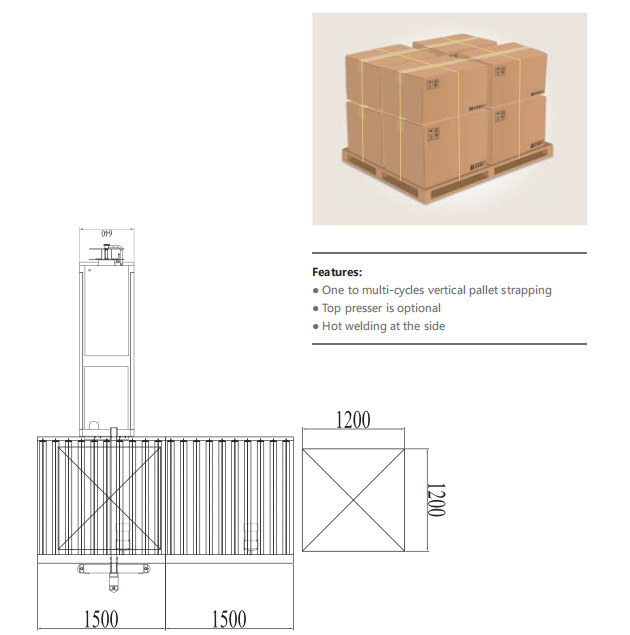

The MH-105B Fully Automatic Vertical Strapping Machine is an industrial-grade pallet strapping solution designed for high-efficiency logistics and warehouse automation. This automatic vertical strapping machine features one-to-multi-cycle vertical pallet strapping capabilities, making it ideal for securing large carton loads on standard pallets up to 1200mm × 1200mm.
Equipped with hot welding side sealing technology and an optional top presser, the MH-105B ensures tight, reliable PP strap tension ranging from 0-90kg (adjustable). The machine supports PP straps 9-15mm wide and 0.55-1.0mm thick, delivering packing speeds of ≤15 seconds per cycle.
Key specifications include 380V 50/60Hz 3PH 1.6kW power supply, air pressure requirements of 0.4-0.6MPa, and machine dimensions of L4145mm × W845mm × H2630mm. With an arch size of W1500mm × H2000mm and net weight of 350kg, this fully automatic strapping machine integrates seamlessly into conveyor systems and automated packaging lines.
Perfect for warehouse automation, pallet securing, logistics packaging, and industrial strapping applications.
MH - 105B SPECIFICATION
- Power Supply:380V 50/60Hz 3PH 1.6kW
- Air Pressure:0.4 ~0.6MPa
- Tension Range:0~90kg(adjustable)
- Packing Speed:≤15 seconds/cycle
- Applicable PP Strap:width9~15 (±0.1) mm, thickness0.55~1.0 (±0.1) mm
- Applicable PP Strap Spool:inner dia.200~210mm, outer dia.400~500mm, width160~180mm
- Machine Dimension:L4145×W845×H2630mm
- N.W:350kg (arch sizeW1500mm×H2000mm)
