Mobile Palletizing Workstation | Intelligent Robotic Palletizer System
Product Overview：
The Mobile Palletizing Workstation is an advanced automated palletizing solution designed for modern manufacturing and logistics operations. This collaborative robot palletizer combines industrial-grade force sensing technology with intelligent safety systems to deliver unmatched reliability and operational efficiency.
Key Features & Technical Specifications：
✓ Industrial Force Torque Sensor: High-precision force control palletizing with exceptional reliability and safety standards
✓ Advanced Collision Detection: 10-level collision sensing with safety-certified sensor monitoring
✓ Safety-First Design: 16 dedicated safety I/O interfaces with fail-safe functionality — maintains protective capabilities even during single-point failures
✓ Compact Integrated Architecture: Space-saving mobile palletizer with lightweight, flexible deployment
✓ Rapid Task Deployment: Easy programming palletizing robot enables quick workstation setup and high operational efficiency

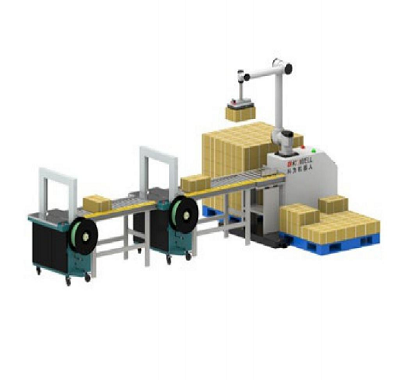

Mobile Palletizing Workstation TY-MD-30D for Cartons
Parameter Specification
Model TY-MD-30D
Load 30kg
Working radius 2000mm
Pallet specifications 1200X1300mm
Palletizing height 1500mm
Palletizing speed 300-500 times
Repeat positioning accuracy ±0.06mm
IP rating IP54
Temperature range 0-55℃
Maximum power consumption 6KVA
Rated voltage 220V/380V
Overall machine weight 360KG
Covered area 1500mm X 1700mm
Mobile Palletizing Workstation TY-MD-40D for Cartons
Parameter Specification
Model TY-MD-40D
Load 40kg
Working radius 2000mm
Pallet specifications 1200X1300mm
Palletizing height 1500mm
Palletizing speed 300-500 times
Repeat positioning accuracy ±0.06mm
IP rating IP54
Temperature range 0-55℃
Maximum power consumption 6KVA
Rated voltage 220V/380V
Overall machine weight 360KG
Covered area 1500mm X 1700mm
Industry Applications
Our automated palletizing equipment serves diverse sectors including:
Food & Beverage Palletizing
Pharmaceutical Packaging Automation
Electronics & 3C Manufacturing
Consumer Goods & Cosmetics
E-commerce Fulfillment Centers
Why Choose This Mobile Palletizing Solution?
This flexible palletizing robot addresses critical industry demands for safe human-robot collaboration, small-footprint automation, and rapid deployment capabilities. The integrated design eliminates complex installation requirements while maintaining ISO-certified safety standards essential for FDA-regulated environments and cleanroom applications.
