Palletizing Robot Column System for Bags
Advanced Industrial Palletizing Solution for Bulk Material Handling
Our column palletizing robot delivers precision automation for bagged goods packaging lines. Engineered with advanced robotic control systems, this bag palletizing robot executes smooth linear interpolation between points, ensuring fluid motion trajectories and optimized cycle times.
This automated bag palletizing machine integrates intelligent motion planning algorithms that enable operators to seamlessly program and control positioner movements through an intuitive teach pendant interface. The system supports flexible palletizing pattern programming—allowing users to pre-configure stack arrangements and add new patterns post-installation without production disruption.
Designed for bulk material handling automation, the column-mounted robot executes precise bag stacking operations according to customizable grouping methods and layer specifications. Whether handling cement bags, chemical powders, agricultural products, or food-grade materials, this industrial palletizing robot ensures consistent stacking quality and operational efficiency.
Industry Applications：
✓ Cement & Building Materials — Automated stacking of 25-100kg bags
✓ Chemical Industry — Safe handling of powder and granular products
✓ Agriculture & Feed — High-speed palletizing of seed and fertilizer bags
✓ Food Processing — Hygienic bag stacking for flour, sugar, and grains

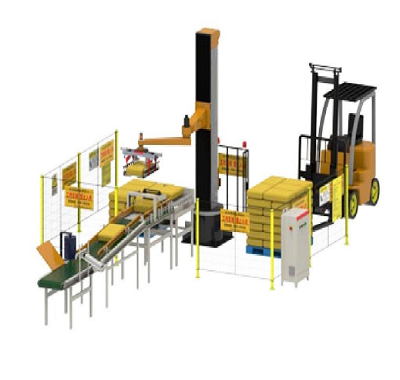

Column palletizing robot for bags one machine one line
Parameter Specification
Model TYLZ
Working Efficiency 350-450 bags/hour
Degrees of Freedom (DOF) 4
Maximum Payload 100kg
Working Radius 2500mm
Repeat Positioning Accuracy ±0.3 mm
Motion Range S-axis (Rotation) ±180°；Z-axis (Vertical) 1800 mm；R-axis (Radial) ±180°；T-axis (Twist/Turn) ±360°
Body Weight 1 ton (1000 kg)

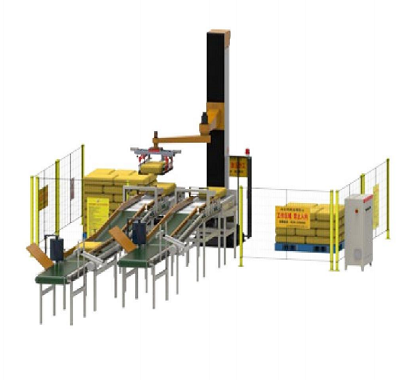

Column palletizing robot for bags one machine two lines
Parameter Specification
Model TYLZ
Working Efficiency 300-450 bags/hour
Degrees of Freedom (DOF) 4
Maximum Payload 100kg
Working Radius 2500mm
Repeat Positioning Accuracy ±0.3 mm
Motion Range S-axis (Rotation) ±180°；Z-axis (Vertical) 1800 mm；R-axis (Radial) ±180°；T-axis (Twist/Turn) ±360°
Body Weight 1 ton (1000 kg)
Why Choose Our Column Palletizing Robot?
Smooth Motion Control — Linear interpolation technology eliminates jerky movements
Flexible Programming — Easy pattern modification and storage expansion
Space-Efficient Design — Vertical column structure minimizes floor space requirements
Reliable Performance — Built for continuous industrial operation
