High-Level Palletizing Robot – Automated Stacking for Packaging Lines
Advanced High-Position Palletizer for Industrial Packaging Automation
The high-level palletizing machine was developed to meet modern industrial demands for increased production capacity and cost control optimization. As packaging automation rapidly evolves, this automated palletizing system has become essential for streamlining post-weighing packaging operations.
System Integration & Workflow:
Our high-position palletizer seamlessly connects downstream from packaging scales, with optional upstream integration of sealing machines, case/bag packing equipment, and automatic strapping machines—creating a complete end-to-end packaging line solution.

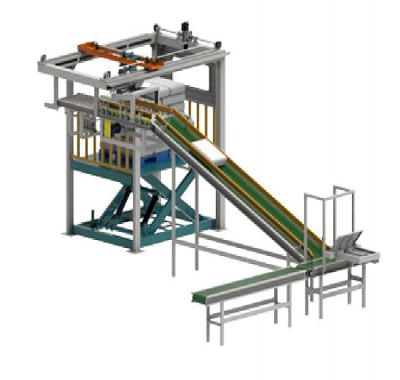

High Level Palletizing Robot One machien One Line without pallet storehouse
Parameter Specification
Model TYGW-500
Palletizing Speed 500 bags/hour
Main Unit Dimensions L3200mm × W2200mm × H3000mm
Power Consumption 7.5KW
Power Supply 3* AC380V + N
Palletizing Height 600–1600mm
Stacking Layers 1–10 layers
Palletizing Pattern 3–12 bags per layer
Air Supply Pressure 0.6–0.8 MPa
Equipment Weight 1800kg (net weight)
High Level Palletizing Robot One machien One Line with pallet storehouse
Parameter Specification
Model TYGW-500
Palletizing Speed 500 bags/hour
Main Unit Dimensions L3200mm × W2200mm × H3000mm
Power Consumption 7.5KW
Power Supply 3* AC380V + N
Palletizing Height 600–1600mm
Stacking Layers 1–10 layers
Palletizing Pattern 3–12 bags per layer
Air Supply Pressure 0.6–0.8 MPa
Equipment Weight 1800kg (net weight)
A high-level palletizer is an automated stacking machine positioned above packaging lines, designed to increase production capacity while reducing labor costs through seamless integration with weighing, sealing, and strapping equipment.
