Palletizing Robot Column System for Cartons
Advanced Industrial Palletizing Solution for Bulk Material Handling
The column robot for carton palletizing is a highly efficient automated solution designed for precise material handling and palletizing of packaged goods.
Packaged materials are first conveyed to the designated palletizing area for accurate positioning. The column robot, through coordinated multi-axis movement, positions its gripper directly above the material. Upon receiving the material positioning signal, the gripper is driven downward along the Z-axis by a servo motor until it reaches the optimal gripping height. The gripper then activates to securely clamp the material, after which the Z-axis servo motor reverses to lift the gripper to a safe height. Following the customer’s pre-programmed instructions, the robot transports the material to the target palletizing position, where the Z-axis descends to place the material precisely at the designated drop-off point.
This automated column robot system delivers consistent, reliable performance for carton palletizing tasks, significantly improving operational efficiency, reducing manual labor, and ensuring high-precision stacking in logistics and manufacturing workflows.
Industry Applications：
✓ Cement & Building Materials — Automated stacking of 25-100kg cartons
✓ Chemical Industry — Safe handling of powder and granular products
✓ Agriculture & Feed — High-speed palletizing of seed and fertilizer cartons
✓ Food Processing — Hygienic carton stacking for flour, sugar, and grains
Column palletizing robot for cartons one machine one line
Parameter Specification
Model TYLZ
Working Efficiency 350-450 cartons/hour
Degrees of Freedom (DOF) 4
Maximum Payload 100kg
Working Radius 2500mm
Repeat Positioning Accuracy ±0.3 mm
Motion Range S-axis (Rotation) ±180°；Z-axis (Vertical) 1800 mm；R-axis (Radial) ±180°；T-axis (Twist/Turn) ±360°
Body Weight 1 ton (1000 kg)

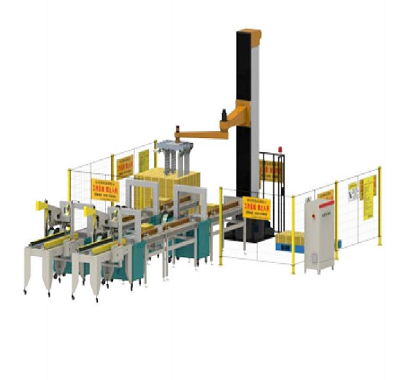

Column palletizing robot for cartons one machine two lines
Parameter Specification
Model TYLZ
Working Efficiency 300-450 cartons/hour
Degrees of Freedom (DOF) 4
Maximum Payload 100kg
Working Radius 2500mm
Repeat Positioning Accuracy ±0.3 mm
Motion Range S-axis (Rotation) ±180°；Z-axis (Vertical) 1800 mm；R-axis (Radial) ±180°；T-axis (Twist/Turn) ±360°
Body Weight 1 ton (1000 kg)
Why Choose Our Column Palletizing Robot?
Smooth Motion Control — Linear interpolation technology eliminates jerky movements
Flexible Programming — Easy pattern modification and storage expansion
Space-Efficient Design — Vertical column structure minimizes floor space requirements
Reliable Performance — Built for continuous industrial operation
