SEMI-AUTOMATIC STRAPPING MACHINE YS-A3F
The YS - A3F semi - automatic strapping machine is a highly efficient and user - friendly solution for packaging operations. It's designed to bundle products with PP straps swiftly and securely.
Equipped with a compact strapping head and the latest PCB program, it offers quick and easy operation. Its compact design, reliable performance, and user - friendly features make it suitable for various industries. The YS - A3F supports multiple power supplies and has a tension range of 3 - 45 kg. It can handle PP straps of different sizes and works with spools of varying dimensions. The working table height is adjustable, and the machine is easy to maintain.
Whether you're strapping cartons or other products, the YS - A3F provides an efficient and reliable solution to meet your packaging needs
Application:
It’s the ideal solution for strapping cartons or bundling
products with PP strap. High reliability, easy to operation,
easy to maintenance.
Features:

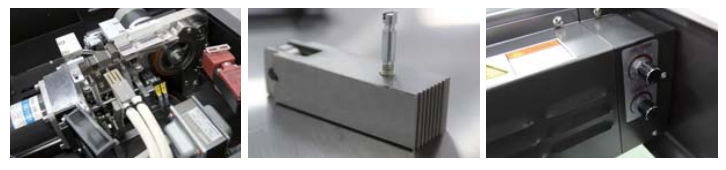

● Compact strapping head (change to the square cutter,
the heating plate widen to 20mm)
● New generation of the PCB program
YS - A3F SPECIFICATION：
- Power Supply: 110V, 220V, 230V 50/60Hz 1PH 0.35kw
- Tension Range: 3 - 45 kg
- Packing Speed: ≤3seconds/strap
- Applicable PP Strap: width 5 - 15 mm, thickness 0.5 - 0.8 mm
- Applicable PP Strap Spool: inner dia. 200 - 210 mm, outer dia. 400 - 500 mm, width 160 - 190 mm
- Working Table Height: 750 mm (optional 750 - 920 mm adjustable)
- Machine Dimension: L840 × W545 × H750 mm N.W: 70 kg
- Packing Measurement: L860 × W550 × H840 mm G.W: 80 kg
