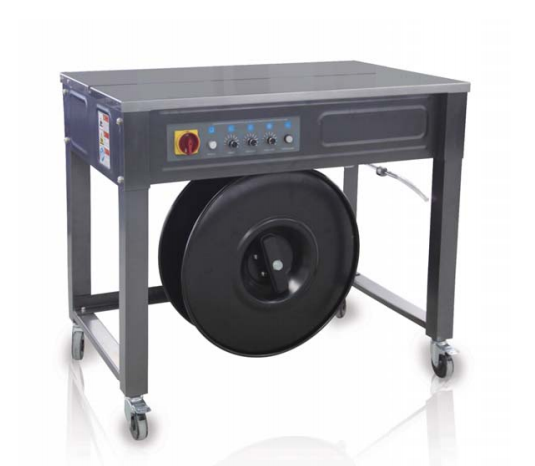

SEMI-AUTOMATIC STRAPPING MACHINE YS-A2F
The YS - A2F is a semi - automatic strapping machine that offers efficient and reliable performance for various packaging applications.

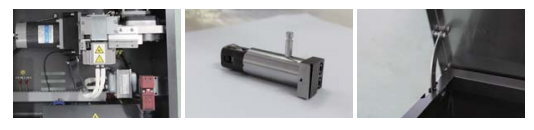

*Compact Strapping Head** :Equipped with a circular cutter and a heating plate with a width of 15 mm, ensuring quick and clean cuts.
*Soft Strapping** :Offers a tension range of 3 - 45 kg, allowing for secure yet gentle strapping of various products.
*Powerful and Efficient** :Powered by a 24V DC motor with a main power switch. The safety switch is optional, providing flexibility in operation.
*Enhanced Durability** :The heating head with a transformer is optional but recommended, as it can significantly extend the machine's usage life.
*User - Friendly Design** :Features a hinged cover plate for easy access during operation and maintenance, making it convenient for users to handle.
With its compact size, reliable performance, and efficient strapping capabilities, the YS - A2F is ideal for businesses looking to optimize their packaging processes. It supports multiple power supplies and is compatible with PP straps of varying widths and thicknesses. The adjustable working table height adds to its versatility, making it suitable for different packaging requirements.
The YS - A2F is designed to meet the needs of various industries, from manufacturing to logistics, ensuring fast and secure packaging of products.
Features:
● Compact strapping head ( circular cutter, the width
of heating plate is 15mm)
● Soft strapping, tension range 3~45kg
● 24V DC motor; with main power switch, the safety
switch is optional
● Heating head with transformer is optional, can extend
the usage life
● Hinged cover plate, easy to operation
YS - A2F SPECIFICATION
- Power Supply: 110V, 220V, 230V 50/60Hz 1PH 0.25kW
- Tension Range: 3 - 45 kg
- Packing Speed: ≤3seconds/strap
- Applicable PP Strap: width 5 - 15 mm, thickness 0.5 - 0.8 mm
- Applicable PP Strap Spool: inner dia. 200 - 210 mm, outer dia. 400 - 500 mm, width 160 - 190 mm
- Working Table Height: 750 mm (optional 750 - 920 mm adjustable)
- Machine Dimension: L840 × W545 × H750 mm N.W: 70 kg
- Packing Measurement: L860 × W550 × H840 mm G.W: 80 kg
