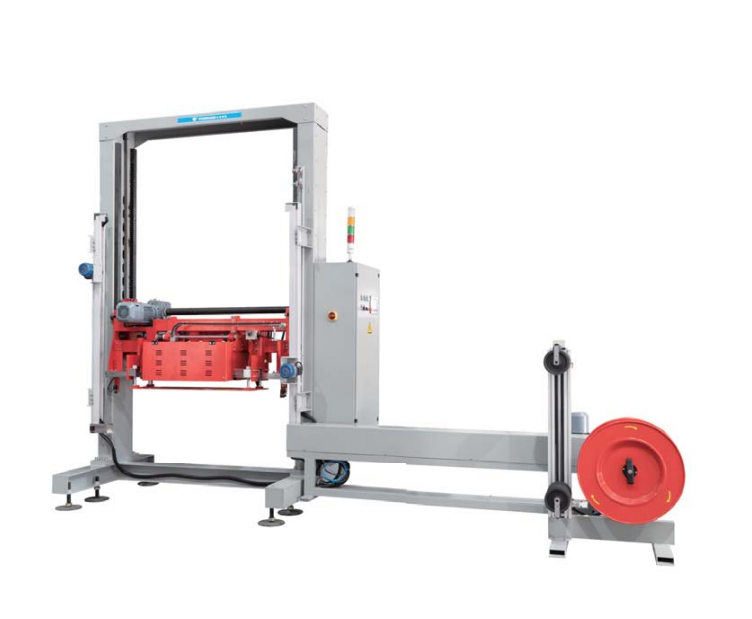

FULLY AUTOMATIC VERTICAL STRAPPING MACHINE WITH TOP PRESSER MH-105C
MH-105C Fully Automatic Vertical Strapping Machine with Top Presser – Advanced Pallet Packaging Solution with Hot Welding Technology
Searching for an automated pallet strapping system that combines vertical bundling with top compression? The MH-105C fully automatic vertical strapping machine with top presser delivers integrated vertical pallet strapping with top presser functionality, featuring hot welding on the top (PET strap) for superior load security in industrial packaging operations.
Ideal Applications:
This automatic vertical strapping machine with presser is purpose-built for palletized goods packaging requiring both compression and secure strapping. Perfect for brick manufacturing, tile production, lightweight building materials, and bulk consumer goods where load stability is critical during transportation and storage.
Optimize your packaging efficiency with the MH-105C vertical strapping machine with top presser – the intelligent solution for automated pallet bundling with integrated compression and hot weld sealing technology.

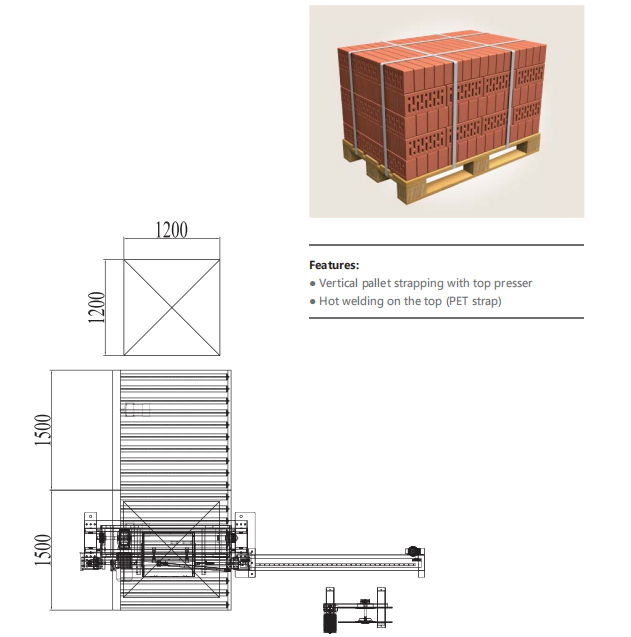

Features:
Vertical pallet strapping with top presser
Hot welding on the top (PET strap)
MH - 105C SPECIFICATION
- Power Supply:380V 50/60Hz 3PH 4.0kW
- Air Pressure:0.4 ~0.6MPa
- Tension Range:20~250kg(adjustable)
- Packing Speed:≤15 seconds/cycle
- Applicable PET Strap:width9~19 (±0.1) mm, thickness0.55~1.0 (±0.1) mm
- Applicable PET Strap Spool:inner dia.406mm, outer dia.600mm, width190mm
- Machine Dimension:L4250×W800×H3300mm
- N.W:800kg (arch sizeW1500mm×H1800mm)
