AUTOMATIC BANDING MACHINE AG02
AG02 Automatic Banding Machine – High-Speed Paper & OPP Film Banding Solution for Food, Pharmaceutical & Print Industries
Looking for a versatile automatic banding machine for your product packaging line? The AG02 automatic banding machine delivers precision paper banding and OPP film banding capabilities, making it the ideal choice for food packaging, pharmaceutical bundling, and commercial printing applications.
Ideal Applications:

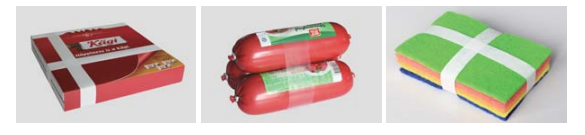

This automatic banding machine excels at food product bundling (sausages, packaged goods), pharmaceutical packaging, commercial print finishing (books, catalogs, brochures), and retail product banding. The external dispenser option extends arch size capabilities for larger product formats.
Enhance your packaging sustainability with the AG02 automatic banding machine – your solution for high-speed, eco-friendly product bundling with paper and OPP film technology.
Features:
● Conform with CE, with power failure protection, no-action
protection function
● DC 24V safety voltage
● Touch screen and button operation
● Parameter settings on touch screen, with 6 languages
● Every port has a detection function, easy to get information
AG02 SPECIFICATION
- Power Supply:110~120/200~240V 50/60Hz 1PH 0.25kW
- Tension Range:≤5kg(adjustable)
- Packing Speed:26cycles/min
- Applicable Band:paper/OPP film
- Band Width:standard 30mm (20mm is optional)

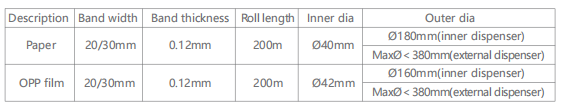

- Applicable Band Spool:refer to following material specification
- Working Table Height:245mm

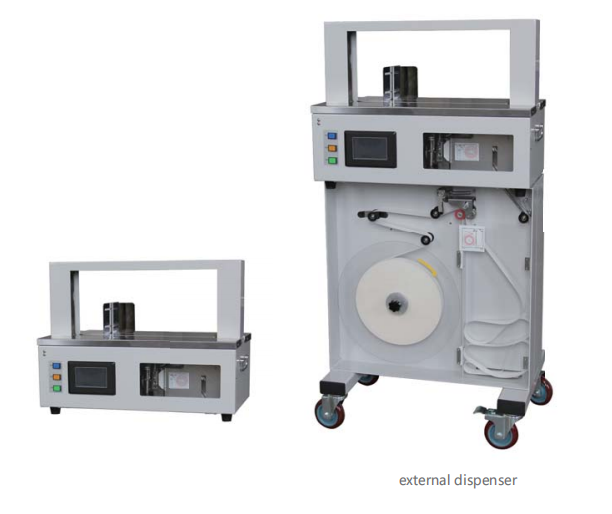

- Machine Dimension:L650×W360×H480mm / L650×W360×H1140mm (external dispenser)
- N.W:40 kg (arch size460×200mm) / 75 kg (external dispenser, arch size460×200mm)
- Packing Measurement:L680×W400×H630mm / L680×W470×H1290mm (external dispenser)
- G.W:50 kg (arch size460×200mm) / 95 kg (external dispenser, arch size460×200mm)
