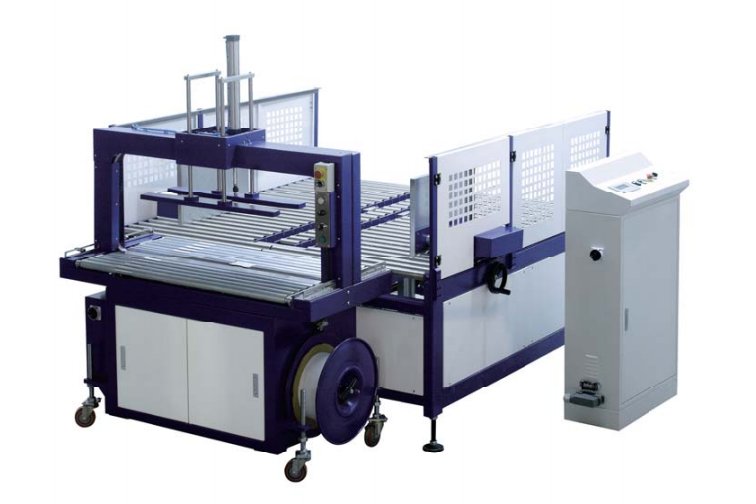

CORRUGATED BUNDLE SQUARING & STRAPPING SYSTEM
YS-305RP+YS-LX500
The YS-305RP+YS-LX500 corrugated bundle squaring & strapping system is a cutting - edge solution for businesses in the packaging industry. Its advanced features and robust design ensure high - speed and high - precision bundling and strapping of corrugated products.
Key features of the YS-305RP include:
*High Capacity**: With a tension range of 0 - 45 kg and a packing speed of 13 packs per minute, it handles high - volume packaging tasks efficiently.
*Versatile Application**: Suitable for various industries where corrugated packaging is used, such as paper products, packaging materials, and more.
*Powerful Performance**: Equipped with a powerful motor and reliable control system, it ensures consistent and stable operation.
*User - Friendly Design**: Features an intuitive control panel for easy operation and monitoring.
*Adjustable Working Table**: The working table height is set at 850 mm for optimal operator comfort.
The YS-LX500 complements the system with its efficient bundle squaring capabilities. It ensures that bundles are neatly squared and properly aligned before strapping, enhancing the overall packaging quality.
Together, the YS-305RP+YS-LX500 offers a comprehensive solution for businesses looking to optimize their packaging processes. Its combination of speed, precision, and reliability makes it an ideal choice for corrugated packaging applications.
Features:
● Speed 13packs/min
● Corrugated strapping machine YS-305RP
● 4-side squaring bundle control YS-LX500,bundle turner
for corrugated carton is optional
● Optional high-grade configuration: YS-505RP
YS - 305RP SPECIFICATION
- Power Supply: 220V 50/60Hz 1PH 1.0kW
- Air Pressure: 10L/cycle
- Tension Range: 0 - 45kg
- Packing Speed: 13packs/min
- Applicable PP Strap: width 5mm, 6mm, thickness 0.5 - 0.8mm
- Applicable PP Strap Spool: inner dia. 200 - 210mm, outer dia. 400 - 450mm, width 170 - 190mm
- Working Table Height: 850mm

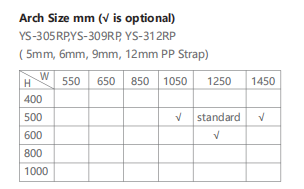

- Machine Dimension: L1520 × W680 × H2000mm N.W: 280kg (arch size1250×500mm)
- Packing Measurement: L1600 × W800 × H2100mm G.W: 330kg (arch size1250×500mm)
YS - LX500 SPECIFICATION
- Power Supply: 380V 50/60Hz 3PH 1.0kW
- Speed: 13packs/min
- Working Table Height: 850mm
- Machine Dimension: L1900 × W2050 × H1470mm N.W: 780kg (arch size1250×500mm)
- Packing Measurement: L2100 × W1950 × H1500mm G.W: 820kg (arch size1250×500mm)
