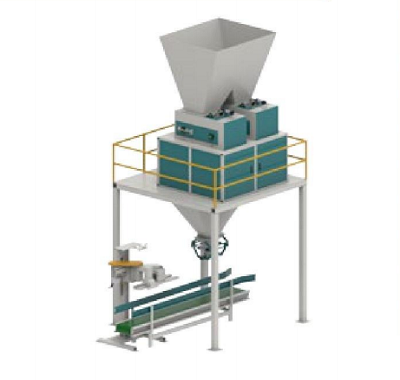

TY-Z-S Belt-Type Large Double-Hopper Quantitative Packaging Scale
The TY-Z-S (Large) Belt-Type Large Double-Hopper Quantitative Packaging Scale is a high-performance industrial weighing and packaging solution designed for low-moisture, free-flowing bulk materials. Engineered with precision and efficiency in mind, this system integrates advanced weighing technology with automated packaging processes to deliver reliable, consistent results for your production line.
Key Features & Specifications:
Material Compatibility: Ideal for low-moisture, free-flowing materials, ensuring smooth operation and accurate dosing.
Weighing Range: 10–50 kg per bag, with a high precision of ±0.2% to meet strict quality control standards.
High Throughput: Capable of processing 400–500 bags per hour, maximizing production efficiency and reducing labor costs.
Feeding System: Utilizes three-speed gravity feeding for precise material flow control, minimizing waste and ensuring accurate weight distribution.
Bag Clamping: Equipped with a jaw-type bag clamping mechanism for secure bag handling and stable operation.
Construction: The main scale body (material contact parts) is constructed from 304 stainless steel, offering excellent corrosion resistance and hygiene compliance for food, chemical, and agricultural applications.
Standard Configuration: Includes a main scale body, control system, 3-meter conveyor, and sewing machine for a complete, turnkey packaging solution.
Power & Utilities: Operates on 5.0 kW power, requiring 0.4–0.6 MPa compressed air at a rate of 1 m³/h.
Compact Design: Stands at a height of 3600 mm, optimized for integration into existing production layouts.
Belt-Type Quantitative Packaging Scale
Model Specification TY-Z-S (Large)
Standard Configuration Main scale body (material contact parts made of 304 stainless steel), control system,
3-meter conveyor, bag sewing machine
Feeding Mode Three-speed gravity feeding
Bag Clamping Mode Jaw-type bag clamping
Weighing Range (kg) 10-50
Weighing Accuracy ±0.2%
Weighing Speed (bags/hour) 400-500
Scale Body Height 3600mm
Power & Air Consumption 5.0KW, 0.4—0.6Mpa compressed air, 1m³/h
Application Scope Materials with low moisture content and good fluidity
