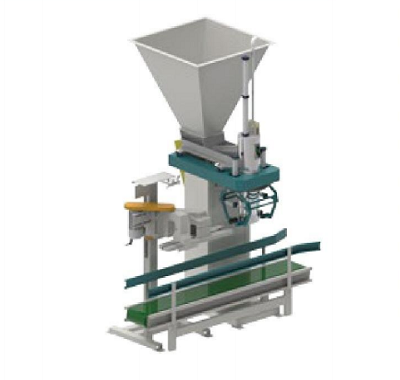

TY-L-W Vacuum Release Powder Packaging Machine
Our vacuum-release powder packaging machine (Model TY-L-W) is engineered for precise, efficient packaging of fine powder materials with moisture content below 15% and particle sizes ranging from 100 to 300 mesh. Ideal for chemical, fertilizer, and mineral powder industries, this system comes standard with a main weighing unit, control system, conveyor, and bag sewing machine to deliver end-to-end automated packaging.
Featuring auger screw feeding and double-cylinder belt bag clamping, it offers a weighing range of 25–50kg with ±0.2% accuracy, and a packaging speed of 80–120 bags per hour. With power consumption of 8KW, compressed air requirements of 0.4–0.6Mpa at 1m³/h, and a compact footprint of 2800×1100×950mm, it optimizes production line efficiency while ensuring clean, dust-free packaging for fine powder materials.
Industrial Powder Bagging Equipment
Model TY-L-W
Standard Configuration Main weighing unit, control system, conveyor, bag sewing machine
Feeding Method Auger screw feeding
Bag Clamping Method Double-cylinder belt clamping
Weighing Range 25–50 kg
Weighing Accuracy ±0.2%
Weighing Speed 80–120 bags/hour
Weigher Height 2800 mm
Power & Air Consumption 8KW; Compressed air: 0.4–0.6Mpa, 1m³/h
Application Range Powder materials with moisture content <15% and particle size between 100–300 mesh
Overall Dimensions 2800×1100×950 mm
