I.G Pneumatic filling machine
Precision Pneumatic Filling for Liquids & Ointments
High-precision I.G pneumatic filling machine for liquid, ointment, and paste products. Available in single/double-head models with filling volumes from 3ml to 3500ml, ideal for food, cosmetics, and pharmaceutical industries.
Our I.G Pneumatic Filling Machine is a robust, air-powered filling solution designed for accurate, consistent dosing of liquids, ointments, pastes, and viscous materials. Built with food-grade stainless steel (304/316L), it meets strict hygiene standards for food, cosmetic, and pharmaceutical applications, delivering reliable performance with minimal maintenance.
Whether you need to fill small cosmetic jars (3–40ml) or large industrial containers (up to 3500ml), our range of models and configurations ensures a perfect match for your production line.
Application Scenarios
Food Industry: Honey, sauces, jams, edible oils, and other viscous food products.
Cosmetics & Personal Care: Creams, lotions, serums, ointments, and hair care products.
Pharmaceuticals: Medicinal ointments, gels, syrups, and small-dose liquid medications.
Chemical & Industrial: Lubricants, adhesives, and other industrial pastes/liquids.

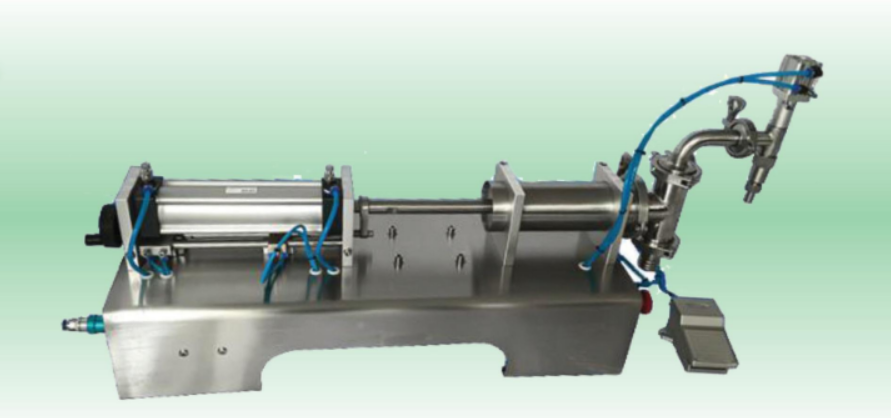

I.G Pneumatic filling machine
Automatic ointment filling machine
Filling volume options:
5–50ml；30–300ml；60–600ml；120–1200ml；260–2600ml；350–3500ml
Machine Models
Vertical pneumatic constant temperature ointment filling machine (water circulation type)

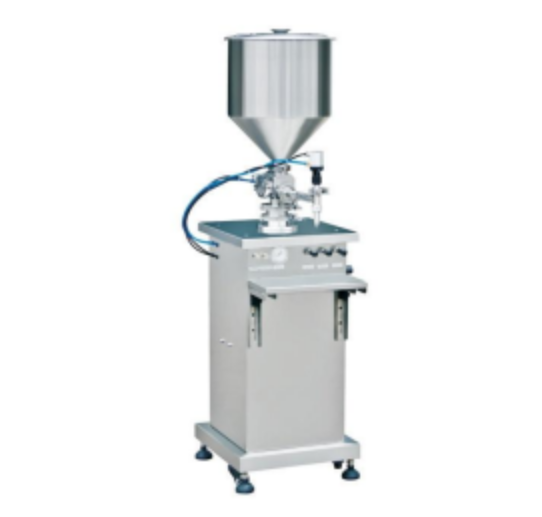

Vertical pneumatic ointment & liquid filling machine
Vertical double-head filling machine

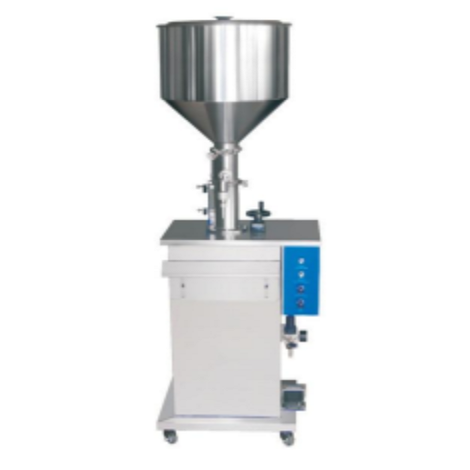

Vertical single-head ointment filling machine
Main Technical Parameters
Type I.G-200 I.G-500 I.G
Air pressure 0.6–0.8MPa 0.6–0.8MPa 0.6–0.8MPa
Air consumption ≤0.1m³/min ≤0.3m³/min ≤0.1m³/min
Filling Volume 5–200ml 10–200ml 3–40ml
Max. Production capacity 10–30 pcs/min 10–20 pcs/min 10–20 pcs/min
Dimension (L×W×H) 400×300×1680mm 460×360×1720mm 500×530×2100mm
FAQ
Q: What types of products can this machine fill?
A: It handles a wide range of viscosities, from thin liquids (e.g., oils, syrups) to thick pastes/ointments (e.g., creams, gels, sauces).
Q: Is it easy to clean between product changes?
A: Yes – all product-contact parts are dismountable without tools, enabling quick cleaning and sanitization to prevent cross-contamination.
Q: Can it handle small-batch production?
A: Absolutely. The adjustable filling volume and compact footprint make it ideal for both small-scale artisanal production and large industrial lines.
