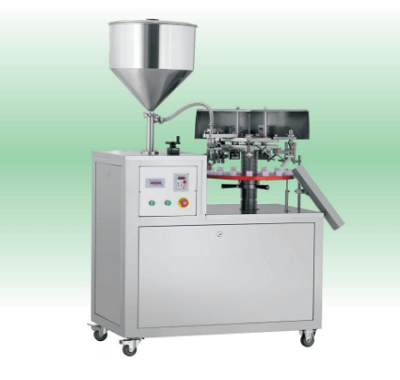

GFLZ-30 Aluminum tube filling and sealing machine

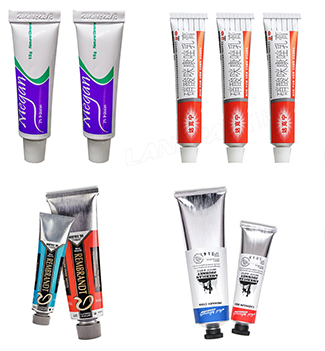

The machine is widely used for filling, sealing and batch No. printing of products packaged by aluminum tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the machine can realize two-sealing, three-sealing and four-sealing. According to customer requirements, the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also form a production flow line with other equipment such as the automatic packaging machine and etc.
Features
Manual tube feeding, automatic color code aligning, automatic tube discharging
Mechanically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation
Touch screen (optional)
Wire drawing preventing or leakage preventing filling head (optional)
Storage barrel liquid level control and alarming system, automatic feeding (optional)
Provided with mixing storage barrel (optional)
Provided with heating storage barrel (optional)
Item Specification
Type GFLZ-30
Power Supply 380(220)V/50Hz
Power 1.5kW
Air consumption β€0.3mΒ³/min
Filling Volume 15β60ml / 60β120ml / 120β200ml
Metering precision Β±1% / Β±2% / Β±1%
Max. Production capacity 25β30 pcs/min
Tube size Ξ¦13βΞ¦35mm
Dimension(LΓWΓH) 1200Γ1000Γ1700mm
Weight 220kg
