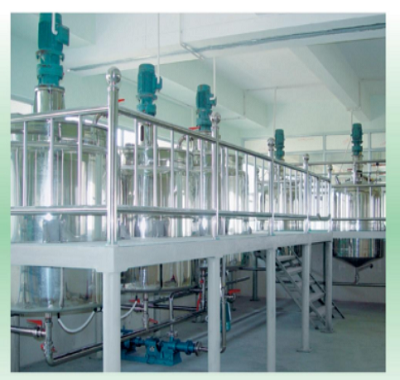

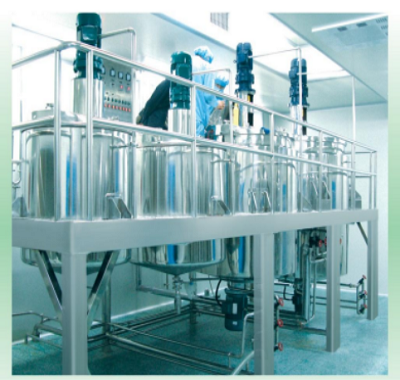

Shampoo Production Line
Our shampoo production line is a comprehensive, turnkey processing system designed for the efficient manufacturing of liquid and gel-based personal care products. It is specifically engineered to meet the strict hygiene and quality standards required for shampoo, shower gel, hair conditioner, hair spray, and hair gel production.
Built with food-grade stainless steel (304/316L) and compliant with industry regulations, this complete production line ensures consistent, stable, and contamination-free results. It is an ideal solution for both small-batch formulation development and large-scale industrial production.
System Composition
The shampoo production line consists of essential components for a seamless manufacturing process:
Shampoo Pot: Main vessel for mixing, emulsifying, and processing
Preparation Pot: For pre-mixing raw materials
Metering Tank: Precise measurement of liquid/powder ingredients
Operation Platform: Central control and working area
Control Cabinet: Automated control of speed, temperature, and pressure
Auxiliary Systems: Stainless steel filters, pipelines, valves, and pumping equipment
Core Features
✅ Hygienic Stainless Steel Construction: Inner container and outer shell are made of premium stainless steel, ensuring corrosion resistance, easy cleaning, and compliance with food/cosmetic safety standards.
✅ Integrated Temperature Control: Equipped with steam and cooling water isolation casings and an outer insulation layer, ensuring uniform heating/cooling for stable formula viscosity.
✅ High-Efficiency Mixing: Features upper speed-adjustable mixing devices for thorough blending of raw materials, delivering homogeneous mixtures.
✅ Complete Material Feeding & Discharging: Includes dedicated devices for material feeding, temperature measurement, and discharging, ensuring a smooth, three-stage production process.
✅ Customizable & Scalable: Available in multiple models (SH-500, SH-1000, SH-2000) to meet diverse production volume needs, from lab-scale to industrial-scale.
Turnkey Solution for Hair Care Manufacturing
SH-500 SH-1000 SH-2000
Working Capacity (L) 500 1000 2000
Inner Container Dimensions (Φ×H, mm) Φ880×1060 Φ1100×1280 Φ1400×1500
Jacket Thickness (mm) 40 40 50
Jacket Pressure (MPa) ≤0.2 ≤0.2 ≤0.2
Internal Pressure (MPa) Atmospheric Atmospheric Atmospheric
Insulation Layer Thickness (mm) 50 50 50
Power Supply 380V/50Hz 380V/50Hz 380V/50Hz
Shaft Motor Power (kW) 1.5 3.5 7.5
Rotation Speed (rpm) 10–400 10–400 10–400
Applications
Shampoo & Body Wash
Shower Gel & Bubble Bath
Hair Conditioner & Hair Mask
Hair Spray & Hair Gel
Other Liquid Personal Care Products
Why Choose Our Shampoo Production Line?
Turnkey Solution: All-in-one system eliminates the need for multiple machines, simplifying production line setup.
Consistent Quality: Automated controls and precise mixing ensure uniform product texture and stability batch after batch.
Cost-Efficient: Scalable models and energy-efficient design reduce operational costs and maximize productivity.
Reliable After-Sales Service: We provide design, manufacturing, installation, and three-year guarantee service tailored to your production needs.
