Layer Palletizing Robot System | Automated Depalletizing & Palletizing Solution
Our intelligent robotic palletizing system revolutionizes warehouse automation by seamlessly handling layer-by-layer case stacking and automated slip sheet placement. This industrial robot depalletizing solution precisely picks cases from conveyors and arranges them onto pallets with optimal efficiency.

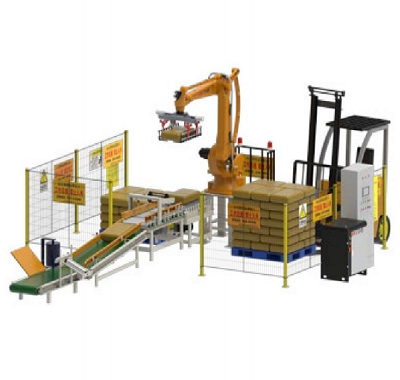

Palletizing Robot for bags One machine One line
Parameter Specification
Operating Efficiency 600 – 800 bags/hour
Applicable Range Bags, cases, drums, sheets, film-wrapped packages
Air Supply Requirements 0.6 MPa; 0.5–0.6 MPa; 0.4–0.6 m³/min
Power Supply 380 VAC, 50 Hz, ±10%
Power Consumption Max. 12 kVA
Palletizing Diameter 4.8–6.4 m

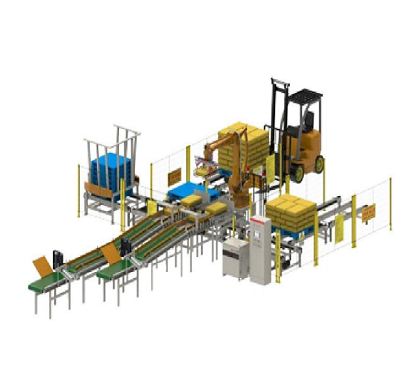

Palletizing Robot for bags One machine Two lines
Parameter Specification
Operating Efficiency 800 - 1200 bags/hour
Applicable Range Bags, cases, drums, sheets, film-wrapped packages
Air Supply Requirements 0.6 MPa; 0.5–0.6 MPa; 0.4–0.6 m³/min
Power Supply 380 VAC, 50 Hz, ±10%
Power Consumption Max. 12 kVA
Palletizing Diameter 4.8–6.4 m

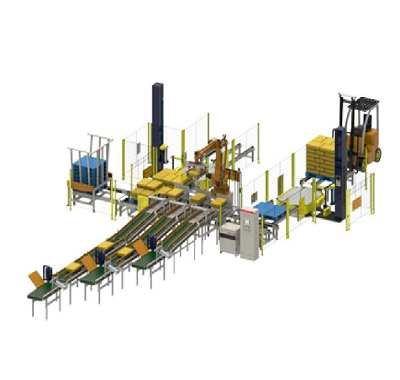

Palletizing Robot for bags One machine Three lines
Parameter Specification
Operating Efficiency 500 - 700 bags/hour
Applicable Range Bags, cases, drums, sheets, film-wrapped packages
Air Supply Requirements 0.6 MPa; 0.5–0.6 MPa; 0.4–0.6 m³/min
Power Supply 380 VAC, 50 Hz, ±10%
Power Consumption Max. 12 kVA
Palletizing Diameter 4.8–6.4 m
Palletizing Robot for bags One machine Two lines with pallet storehouse
Parameter Specification
Operating Efficiency 800 - 1200 bags/hour
Applicable Range Bags, cases, drums, sheets, film-wrapped packages
Air Supply Requirements 0.6 MPa; 0.5–0.6 MPa; 0.4–0.6 m³/min
Power Supply 380 VAC, 50 Hz, ±10%
Power Consumption Max. 12 kVA
Palletizing Diameter 4.8–6.4 m
