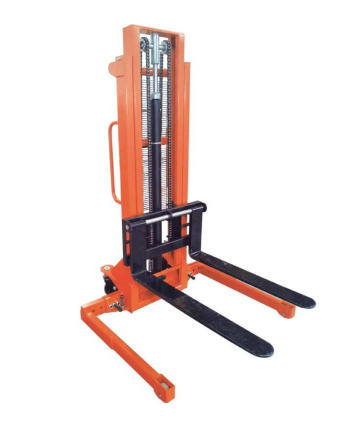

STRADDLE STACKER

The Straddle Stacker is a versatile and efficient material - handling equipment designed for lifting, stacking, and transporting goods in warehouses, factories, and distribution centers. It combines the functionality of a pallet truck with the added capability of vertical lifting, making it suitable for various applications where flexibility and efficiency are required.

This Straddle Stacker features a high - quality frame that ensures durability and stability during operation. It is equipped with a cylinder with a constant flow valve, which guarantees smooth and controlled descent of loads, even when handling heavy goods. The lifting mechanism can be operated via a handle or foot pedal, offering flexibility and ease of use. The high - strength fork provides secure and stable load support, while the optional forged fork enhances its load - bearing capacity and durability.

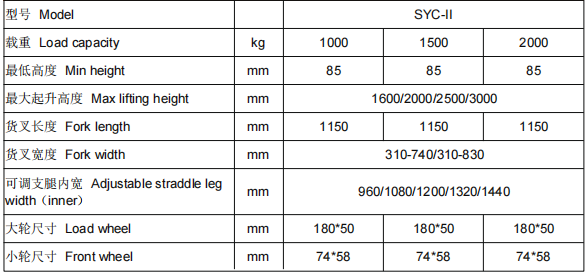

The Straddle Stacker SYC-II has a load capacity ranging from 1000kg to 2000kg, with a maximum lifting height of 1600mm, 2000mm, 2500mm, or 3000mm, depending on the model. Its fork length is 1150mm, and the fork width can be adjusted from 310 - 830mm. The adjustable straddle leg width ranges from 960 - 1440mm, allowing it to accommodate different load sizes and pallet dimensions. The large wheel size is 180×50 mm, and the small wheel size is 74×58 mm, ensuring smooth movement on various floor surfaces.

With its robust construction, user - friendly design, and reliable performance, the Straddle Stacker is an ideal solution for businesses looking to optimize their material - handling processes. It enhances operational efficiency, reduces manual labor, and ensures safe and secure handling of goods. Whether used for loading and unloading goods, stacking materials, or transporting goods within a facility, this Straddle Stacker offers an efficient and cost - effective way to streamline workflows.
