SEMI-ELECTRIC SELF-LOADING STACKER
The Semi - Electric Self - Loading Stacker is an advanced material - handling solution designed to enhance efficiency in warehouses, factories, and logistics centers. This versatile equipment combines semi - electric power with manual operation, offering a perfect balance between automation and human control. It is ideal for businesses seeking to optimize their material - handling processes while reducing physical strain on operators.

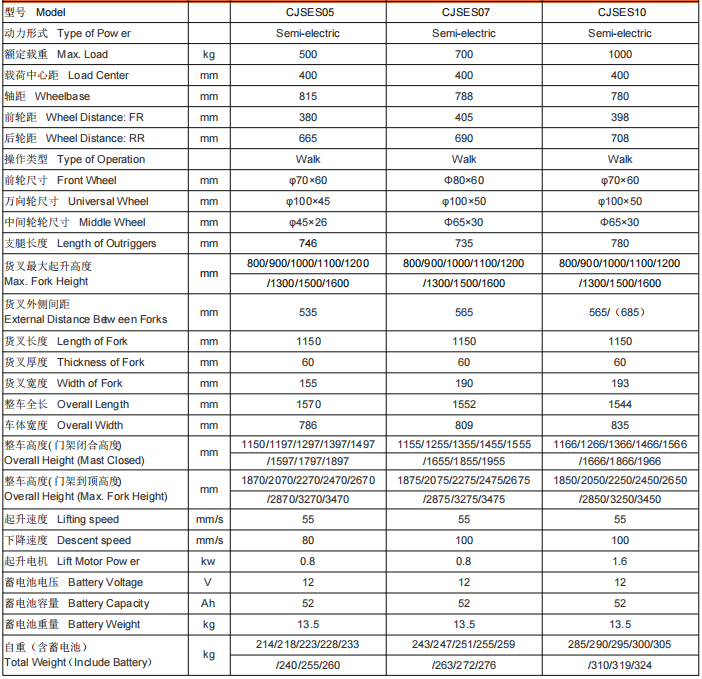

Available in multiple models, including CJSES505, CJSES07, and CJSES10, these stackers cater to different load capacities of 500 kg, 700 kg, and 1000 kg. They feature a robust design with a wheelbase ranging from 815 mm to 780 mm, ensuring stability during operation. The stackers are equipped with high - performance batteries, providing reliable power and long - lasting performance. The battery voltage is 12 V, with capacities ranging from 52 Ah to meet varying operational demands.
These stackers are designed for easy maneuverability, with a minimum turning radius of 1450 mm . They feature a lifting fork height of up to 205 mm, allowing for efficient loading and unloading of goods. The fork dimensions are carefully crafted to accommodate standard pallet sizes, with fork lengths of 1150 mm and widths ranging from 155 mm to 193 mm.
The Semi - Electric Self - Loading Stacker is equipped with a powerful lift motor, with power ratings of 0.8 - 1.6 kw, ensuring smooth and rapid lifting operations. The lifting speed is 55 mm/s, and the descent speed is 80 - 100 mm/s, providing efficient material handling. The equipment also features a well - designed braking system and steering system, enhancing safety and stability during operation.
Whether used for loading and unloading goods, transporting materials within a facility, or stacking items in storage areas, the Semi - Electric Self - Loading Stacker offers an efficient and cost - effective solution. Its combination of semi - electric power and user - friendly design makes it an indispensable tool for modern businesses aiming to streamline their material - handling processes and improve overall productivity.
