IN-LQF12T Automatic Liquid Filling and Capping Packaging Line

Boost production efficiency with our fully automatic liquid filling and capping line, designed for sauces, liquids, and viscous products. This turnkey packaging system delivers reliable, GMP-compliant performance with ±1% filling precision and speeds up to 4000 bottles/hour.

Our IN-LQF12T liquid filling and capping line is engineered for seamless integration into various liquids and sauces manufacturing workflows. From bottle unscrambling and filling to capping, labeling, and finished product collection, this automated packaging line streamlines every step with world-class electrical and pneumatic components for low failure rates, long service life, and consistent results.

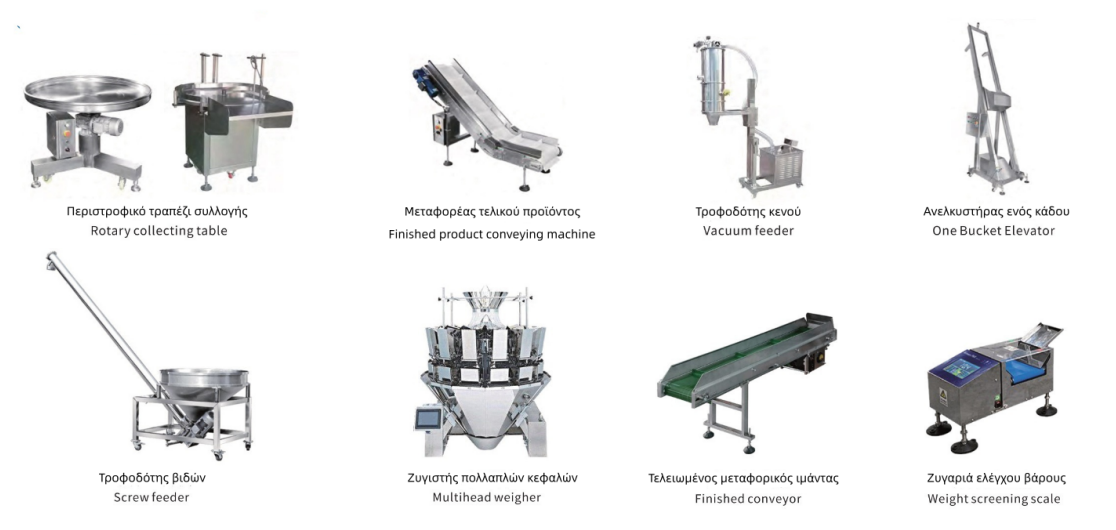

Supporting equipment：

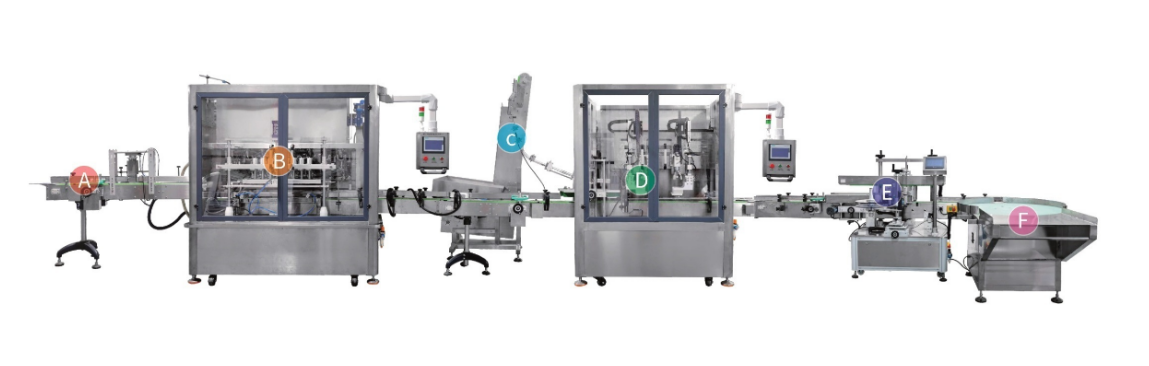

Machine decomposition：

A：Bottle Unscrambler，Tidy up and feed empty bottles to Indexing Belt

B：Filling machine，Automatic feeding to bottles

C：Capping machine，Auto feeding caps to the filled bottles

D: Screw Capping Machine，Auto rotate to close caps by scewing

E：Labeling machine，Label the bottle

F：Finished product bottle management，Organize finished bottles

Features:

  • The world famous brand of electrical and pneumatic components, low failure rate, reliable performance, long service life;

  • High strength stainless steel frame, easy to disassemble and clean, in line with GMP requirements;

  • Filling volume and filling speed adjustment is simple, by touch screen operation and display, beautiful appearance;

  • With no bottle no filling function, automatic control of liquid level feeding;

  • Can quickly adjust bottles of different shapes and specifications without replacing parts;

  • Filling head with special leak-proof device, filling no drawing, dripping phenomenon.

  • Note: filling range and speed can be designed according to user needs of different number of filling

Application:

Suitable for flling various liquids and sauces such as liquids, sauces,soups, tomato sauce,splcy oil, cream,chil sauce,honey, cranberry sauce, barbecue sauce,etc.

Technical parameter：

Model：IN-LQF12T

Filling volume：100-1000ml

Filling speed：2400-4000 Bottle/hour

Filling Precision：＜±1%

Power Supply：380V 60HZ

Power：5KW

Pressure：0.4-0.6MPa

Machine size：(L)2000×(W)900×(H)1900mm

Machine weight：1200kg
