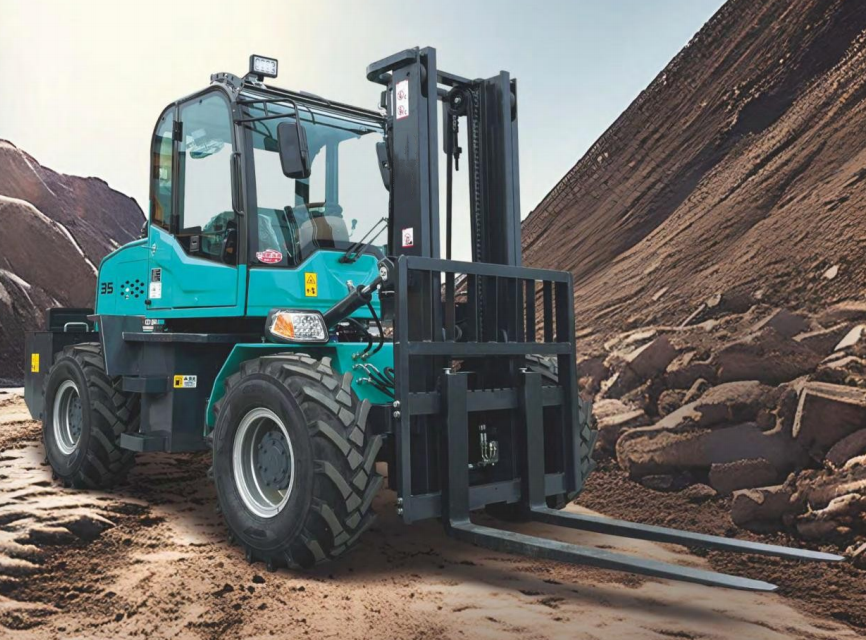

ARTICULATED ROUGH TERRAIN FORKLIFT CPCD35RTJ4
The Articulated Rough Terrain Forklift 3.5-5.0 Ton is a heavy-duty, all-terrain material handling solution engineered for the world's most challenging environments. Combining articulated steering agility with robust diesel power, this rough terrain forklift delivers rated capacities of 3,500 kg and 5,000 kg across uneven ground, muddy conditions, and steep inclines. Designed for construction sites, mining operations, agricultural applications, and remote industrial projects, it provides exceptional off-road performance where conventional forklifts cannot operate.
Engineered for construction material delivery, mining site logistics, agricultural produce handling, lumber and forestry operations, oil and gas field support, quarry and aggregate processing, landfill and waste management, military and defense operations, disaster relief and emergency response, remote infrastructure projects, and any off-pavement material handling challenge.
Powerful Diesel Engine Options:
QUANCHAI 490 engine: 36.8 kW rated power, 154 Nm torque at 1,800 rpm (CPCD35RTJ4)
YUCHAI YCD4N23T8-100D engine: 75 kW rated power, 328 Nm torque at 1,700 rpm (CPCD50RTJ4)
Stage II emission compliance for environmental responsibility
High-torque, low-speed optimization for rough terrain traction
Reliable cold-start performance for extreme weather conditions
Superior Rough Terrain Capability:
Articulated chassis design for exceptional maneuverability on uneven surfaces
High ground clearance: 276-349 mm for obstacle navigation
Outstanding gradeability: 20-30% loaded for steep slope operations
Pneumatic tires with aggressive tread patterns for mud, gravel, and loose surfaces
2x/2 wheel drive configuration with balanced weight distribution
High-Performance Hydraulics:
Fast lifting speed: 350-500 mm/s for efficient load cycles
Controlled lowering speed: 450-550 mm/s for safe placement
Responsive hydraulic steering for precise articulation control
Heavy-duty lift cylinders for reliable 3.5-5 ton capacity
We also provide customized forklifts and kinds of attachments:
Customized forklifts: Container Forklifts, Used IC forklift regenerate to electric forklift, Explosion Proof Forklift, Stone Forklift, Low Mast Forklift
Attachments: Sideshifter, Side shift fork positioner, Single double pallet handlers, Fork clamps, Tyre clamp, Multi purpose clamp, Paper roll clamp, Tobacco carton clamp, Drump clamp, Block clamp, Invert push, Rotator
