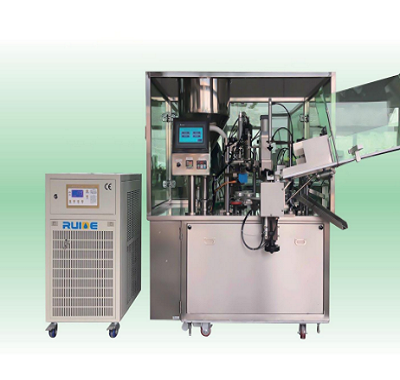

GFN-30-1 Inner heating type Filling And Sealing Machine
The machine is widely used for filling, sealing and batch No. printing of products packaged by aluminum-plastic and full-plastic tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also form a production flow line with other equipment such as the automatic packaging machine and etc.
Features
Equipped with automatic tube dropping box, automatic tube feeding, automatic color code aligning, automatic tube discharging
Mechanically adjusted filling volume, no filling in case of no tube, PLC control, touch screen operation
Equipped with organic glass dust cover (optional)
Touch screen (optional)
Wire drawing preventing or leakage preventing filling head (optional)
Storage barrel liquid level control and alarming system, automatic feeding (optional)
Provided with mixing storage barrel (optional)
Provided with heating storage barrel (optional)
Item Specification
Type GFN-30-1
Power Supply 380(220)V/50Hz
Power 4.2kW
Air consumption ≤0.6m³/min
Filling Volume 15–60ml / 60–120ml / 120–200ml
Metering precision ±1%
Max. Production capacity 25–30 pcs/min
Tube size Φ16–Φ50mm
Dimension(L×W×H) 1600×1090×1500mm
Weight 300kg
