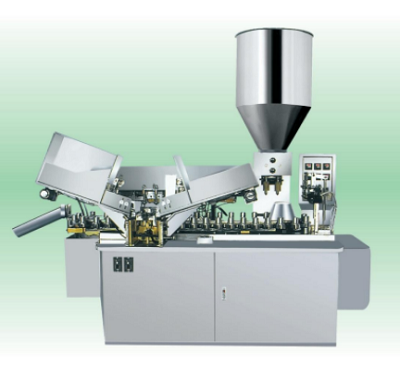

GF-80-1/80-2/80-3/80-4/80-5 Filling And Sealing Machine
The series of machines are widely used for filling, sealing and batch No. printing of products packaged by aluminum-plastic and full-plastic tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives, etc. According to customer requirements, the series of machines can realize dual-use filling of liquid and ointment materials through special design and special filling device. The series of machines can be used independently and can also form a production flow line with other equipment such as the automatic packaging machine and etc.
Features
The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance.
Equipped with automatic tube dropping box, automatic tube feeding, automatic color code aligning, automatic tube discharging.
Mechanically adjusted filling volume, no filling in case of no tube, double-head filling, PLC control, electrical buttons operation.
Wire drawing preventing or leakage preventing filling head (optional).
Storage barrel liquid level control and alarming system, automatic feeding (optional).
Provided with mixing storage barrel (optional).
Provided with heating storage barrel (optional).
Model Descriptions
GF-80-1: Adopts the outer heating form, especially suitable for sealing aluminum-plastic composite tubes with strong adaptability and convenient change of specifications.
GF-80-3: Adopts the inner heating form, especially suitable for sealing full-plastic packaging tubes with hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing.
GF-80-4: Adopts the inner heating form with irregular shape sealing. All heating parts, clamping parts and sealing parts adopt the irregular shape device with precise positioning and various sealing shapes. It is especially suitable for sealing full-plastic packaging tubes.
GF-80-5: Suitable for filling and sealing tubes with the diameter above Φ40mm. Inner or outer heating form can be adopted according to customer requirements.
Parameter 80-1 / 80-3 / 80-4 80-5
Type 80-1 / 80-3 / 80-4 80-5
Power Supply 380V(220V)/50Hz 380V(220V)/50Hz
Power Outer heating: 5.5kW
Inner heating: 9kW 6kW
Filling Volume 10–180ml 100–200ml
Metering Precision ±1% ±1%
Filling at one time 2 pcs 2 pcs
Max. Production Capacity 60–80 pcs/min (80-1/80-3)
45–80 pcs/min (80-4) 45–80 pcs/min
Tube Size Φ19–Φ35mm Φ30–Φ50mm
Dimension (L×W×H) 2320 × 1120 × 2190mm 2670 × 1300 × 2190mm
Weight 1300kg 1800kg
