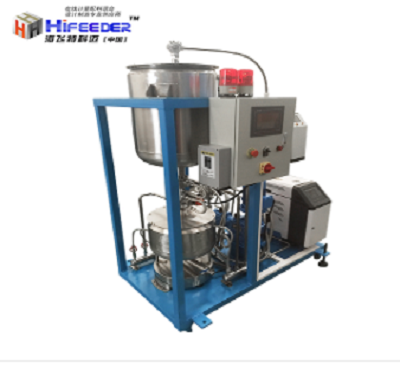

Liquid Heating Loss-in-Weight Feeder
The liquid heating loss-in-weight feeder is a high-precision gravimetric feeding system designed for continuous and batch metering of liquid materials in industrial processes.
Engineered for stability and efficiency, this gravimetric liquid feeder features integrated heating and thermal retention, supporting material temperatures from room temperature up to 120°C to maintain consistent flow properties. It offers flexible pressure configurations to meet diverse production requirements:
7 MPa maximum discharge pressure (gear pump setup)
15 MPa maximum discharge pressure (plunger pump setup)
At the core of the Hifeeder liquid loss-in-weight feeder is advanced gravimetric control technology. By continuously monitoring the weight of the liquid tank, the system automatically adjusts feed rates to compensate for variations in material viscosity, temperature, and pressure, ensuring precise, stable dosing. This capability is critical for applications demanding tight process control, such as chemical manufacturing, plastics compounding, and specialty fluid metering.
Key advantages of this industrial liquid feeder include:
High dosing accuracy: Eliminates fluctuations caused by changing material conditions
Temperature-controlled design: Built-in heating and insulation for temperature-sensitive liquids
Modular integration: Seamlessly connects with existing production lines, including mixers, extruders, and reactors
Customizable pressure setups: Gear pump or plunger pump options to match different process pressures
Robust construction: Durable components built for continuous operation in industrial environments
Precision Liquid Feeding Solutions
Model Flow rate range Hopper capacity Weight capacity Feeder weight Power supply
HF-L-1 0.5-10 kg/h 25 L 25 kg Approx. 120kg 380V AC, 3-phase, 0.55 kVA
HF-L-2 10-100 kg/h 50 L 50 kg Approx. 150 kg 380V AC, 3-phase, 0.75 kVA
HF-L-3 50-200 kg/h 100 L 100 kg Approx. 210 kg 380V AC, 3-phase, 1.5 kVA
HF-L-4 100-500 kg/h 200 L 200 kg Approx. 250 kg 380V AC, 3-phase, 2.2 kVA
Why Choose HIFEEDER?
Whether you are feeding additives, process fluids, or specialty chemicals, the liquid heating loss-in-weight feeder from Hifeeder provides the precision and reliability needed to improve product quality, reduce waste, and optimize production efficiency.
Contact us today to learn more about our custom gravimetric liquid feeding solutions and how they can enhance your manufacturing process.
