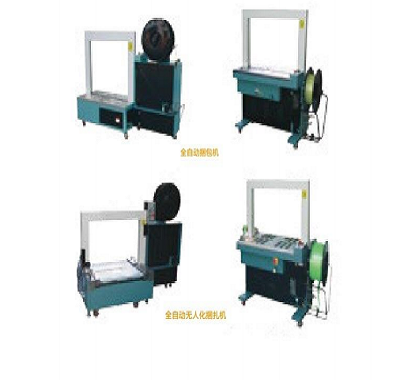

TYKB-200 Strapping Machine
Our automatic strapping machine provides efficient and stable bundling for cartons, boxes, pallets and packages in logistics, food, beverage, e-commerce and manufacturing industries. Designed for high-speed PP and PET strap application, this industrial strapping machine delivers strong tension, firm sealing and consistent performance to ensure safe transportation and storage.
Featuring an intelligent control system, adjustable tension and easy operation, our automatic box strapping machine effectively improves packing efficiency, reduces labor cost and integrates smoothly with case sealers, conveyor lines and palletizing systems. With a durable structure, low failure rate and wide compatibility with different strap sizes, it is an ideal solution for automated packaging lines and modern warehousing.
Industrial strapping machine
Parameter Specification
Model TYKB-200L
Power Supply 1PH-110V/220V (50–60Hz); 3PH-220V/380V (50–60Hz)
Power Consumption 0.85 kW
Strapping Speed 2.0 sec per strap
Tension Force 5–80 kg
Applicable PP Strap Width: 9–16 mm, Thickness: 0.5–1.0 mm
Arch Frame Size W850 × H600 mm (customizable per request)
Machine Dimensions W1880 × D600 × H1200 mm; Table height: 480 mm (customizable per request)
Machine Weight 280 kg
Model TYKB-200H
Power Supply 380V / 50Hz
Power Consumption 0.85 kW
Strapping Speed 2.0 sec per strap
Tension Force 5–80 kg
Applicable PP Strap Width: 9–16 mm, Thickness: 0.5–1.0 mm
Arch Frame Size W850 × H600 mm
Machine Dimensions W1410 × D600 × H1540 mm; Table height: 820 mm (customizable per request)
Machine Weight 285 kg
Model TYKB-200HA
Power Supply 380V / 50Hz
Power Consumption 1.05 kW
Strapping Speed 2.0 sec per strap
Tension Force 5–80 kg
Applicable PP Strap Width: 9–16 mm, Thickness: 0.5–1.0 mm
Arch Frame Size W850 × H600 mm (customizable per request)
Machine Dimensions L1412 × W600 × H1540 mm
Machine Weight 245 kg
Model TYKB-200LA
Power Supply 380V / 50Hz
Power Consumption 1.6 kW
Strapping Speed 2.0 sec per strap
Tension Force 80 kg
Applicable PP Strap Width: 9–15 mm, Thickness: 0.5–1.0 mm
Arch Frame Size W850 × H600 mm (customizable per request)
Machine Dimensions L1880 × W600 × H1200 mm
Machine Weight 280 kg
