AUTOMATIC STRAPPING MACHINE YS-305
The YS - 305 automatic strapping machine is a highly efficient and reliable solution for securing packages with PP straps. It is engineered to deliver fast and consistent performance, making it ideal for businesses that require quick and secure packaging.
Key features of the YS - 305 include:
Impressive Speed: With a speed of 50 cycles per minute, it significantly enhances packaging efficiency.
DC Motor: Powered by a DC motor for reliable and maintenance - free operation.
Auto Features: Equipped with auto strap feeding and auto strap ejection systems for seamless operation.
Convenient Operation: Features a foot switch and button for easy strapping, allowing operators to work efficiently.
Versatile Compatibility: Compatible with PP straps of widths 5 mm, 6 mm, and thicknesses 0.5 - 0.8 mm. It can also accommodate various strap spool sizes, with an inner diameter of 200 - 210 mm, outer diameter of 400 - 450 mm, and width of 170 - 190 mm.
Adjustable Working Table: The working table height is set at 850 mm for optimal operator comfort.
The YS - 305 is suitable for a wide range of industries, including manufacturing, logistics, and retail, where efficient and secure packaging is essential. Its advanced features and user - friendly design make it an excellent choice for businesses looking to streamline their packaging processes and improve operational efficiency.
Features:
● Speed 50cycles/min
● DC motor
● Auto strap feeding, auto strap ejector
● Foot switch and button strapping
YS-305 SPECIFICATION
- Power Supply: 110V, 220V, 230V 50/60Hz 1PH 0.6kW
- Tension Range: 0 - 45kg
- Packing Speed: 50cycles/min
- Applicable PP Strap: width 5mm, 6mm, thickness 0.5 - 0.8mm
- Applicable PP Strap Spool: inner dia. 200 - 210mm, outer dia. 400 - 450mm, width 170 - 190mm
- Working Table Height: 850mm

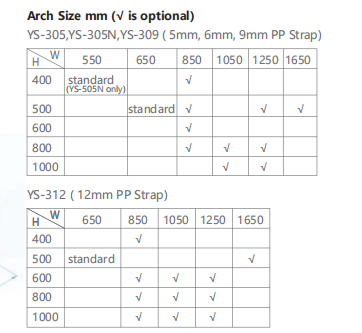

- Machine Dimension: L1170xW585xH1450mm N.W: 185kg (arch size650×500mm)
- Packing Measurement: L1220xW650xH1600mm G.W: 230kg (arch size650×500mm)
