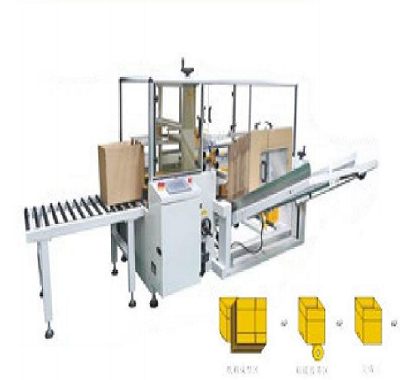

TYKX 40 Erecting Robot
Our automatic case erector is a high-efficiency packaging machine designed for stable carton forming, bottom folding, and sealing in automated production and logistics lines. It delivers reliable performance, fast operation, and easy size adjustment to meet diverse packaging requirements in food, beverage, chemical, e-commerce, agricultural product and manufacturing industries.
Built with a heavy-duty frame and intelligent control system, this case erector machine ensures consistent carton erection, reduces manual labor, and improves overall packaging line efficiency. Supporting a wide range of carton sizes and compatible with conveyor systems, palletizers and packaging lines, it enables smooth automatic production with low maintenance and high stability.
Ideal for high-speed packaging environments, our automatic carton erector provides a cost-effective, durable and user-friendly solution for modern automated packaging systems.
Automatic case erector
Equipment parameters
Model: TYKX-40
Case erection speed: 12 cases per minute
Carton buffer capacity: 100 pieces (1000mm)
Carton size range: Length 250–450 mm, Width 150–400 mm, Height 100–400 mm
Power supply: 220V, 1 phase, 200W
Required air pressure: 6 kg/cm³
Air consumption: 450 NL/min
Machine dimensions: L2000 × W1900 × H1450 mm
Machine weight: 450 kg
Tape size options: 48, 60, 75 mm (the minimum sizes cannot be used at the same time)
Equipment parameters
Model: TYKX-40H18
Case erection speed: 18 cases per minute
Carton buffer capacity: 100 pieces (1000mm)
Carton size range: Length 200–400 mm, Width 150–350 mm, Height 100–350 mm
Power supply: 220V, 1 phase, 200W
Required air pressure: 6 kg/cm³
Air consumption: 450 NL/min
Machine dimensions: L2400 × W2050 × H1450 mm
Machine weight: 550 kg
Tape size options: 48, 60, 75 mm (the minimum sizes cannot be used at the same time)
